FN9263-3-06 -

FILTER, POWER ENTRY MODULE W/MAINS SWITCH, 3A, 373UH, 2.0MH, FASTON CONNECTIONS

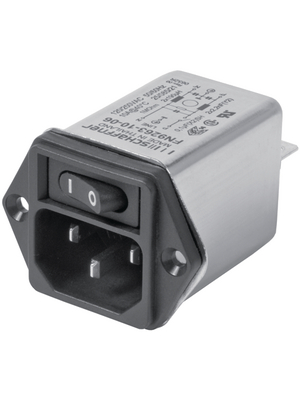

Schaffner FN9263-3-06
声明：图片仅供参考，请以实物为准！
制造商产品编号：
FN9263-3-06
仓库库存编号：
70027304
技术数据表：
View FN9263-3-06 Datasheet Datasheet
订购热线： 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大，部分产品信息可能未能及时更新，下单前请与销售人员确认好实时在库数量，谢谢合作！

FN9263-3-06产品概述

The FN9263 power entry module combines an IEC inlet, mains filter with excellent filter attenuation and a mains switch in a small form factor.

Features:
  • Exceptional Conducted Attenuation Performance, Based on Chokes with High Saturation Resistance and Excellent Thermal Behavior
  • Rear/Front or Snap-In Mounting
  • Small Compact Housing Fitting 1U Rack Applications
  • Versions Up to 10 A Available with 1-Pole Rocker Switch
  • Custom-Specific Versions Are Available on Request

    Applications:
  • Portable Electrical and Electronic Equipment
  • Small to Medium Sized Machines and Household Equipment
  • Single-Phase Power Supplies, Switch-Mode Power Supplies
  • Test and Measurement Equipment
  • Rack Mounting Equipment

    • FN9263-3-06产品信息

      Brand/Series  FN 9263 Series
      Capacitance, Cx  0.1 μF
      Capacitance, Cy  2.2 nF
      Current Rating  3A
      Current, Leakage  373 μA
      Cut Out, Panel  29.2 × 33.2 mm
      Gender  Male
      Inductance  2 mH
      Mounting Type  Panel Mount/Screw
      Number of Poles  1 (Line Switch)
      Resistance  1000 Kilohms
      Schaffner Part Number  803-003
      Temperature, Operating  -25 to +85 °C
      Termination  QC/Solder
      Type  Filter | Switch
      Version  Standard
      Voltage Rating  250 VAC
